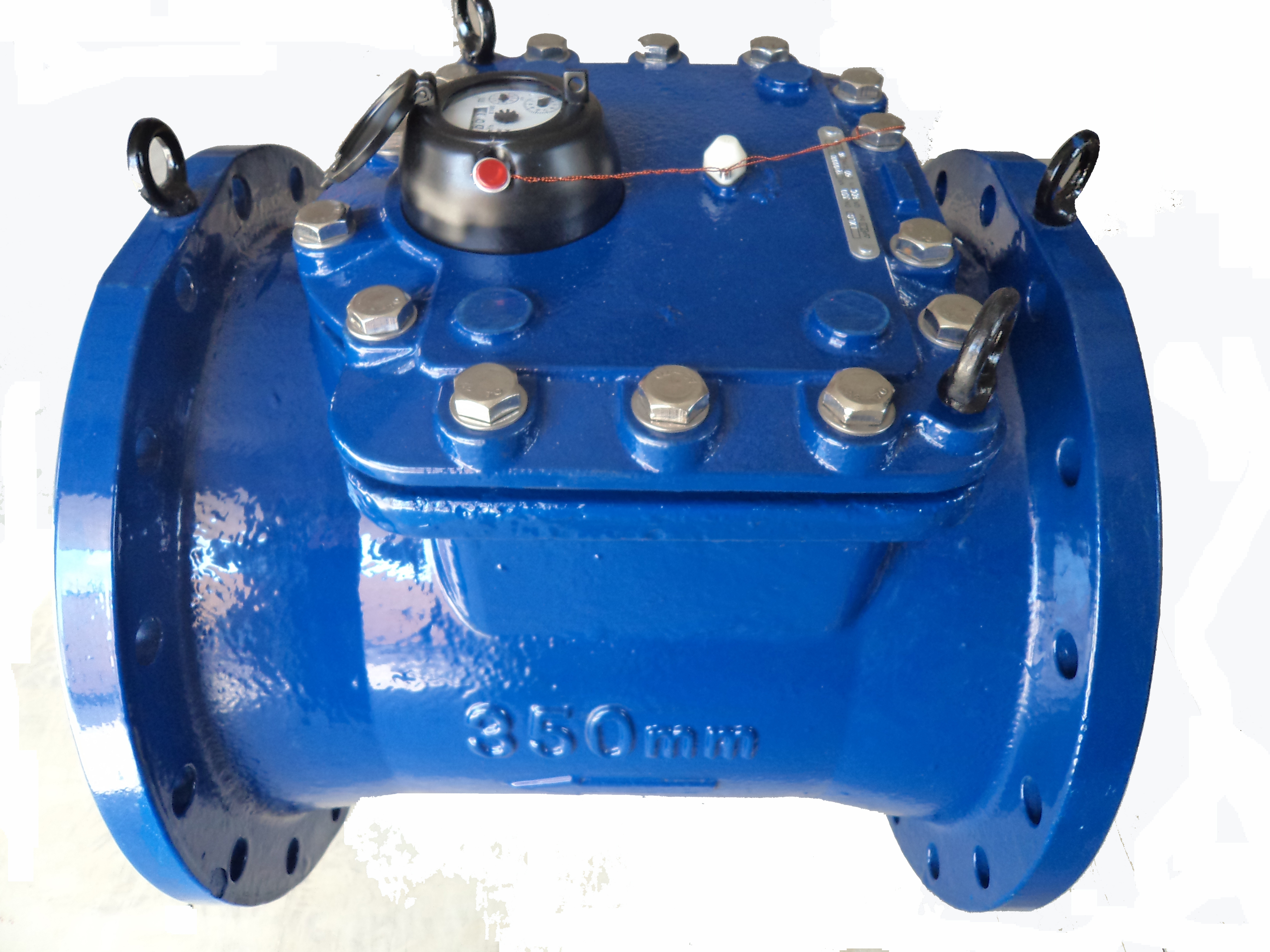

LXLC(R)-350~600(mm)
Removable element woltman cold (hot) water meter

This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.

Application
--Measuring the volume of cold (hot) water passing through the pipeline

Feature:

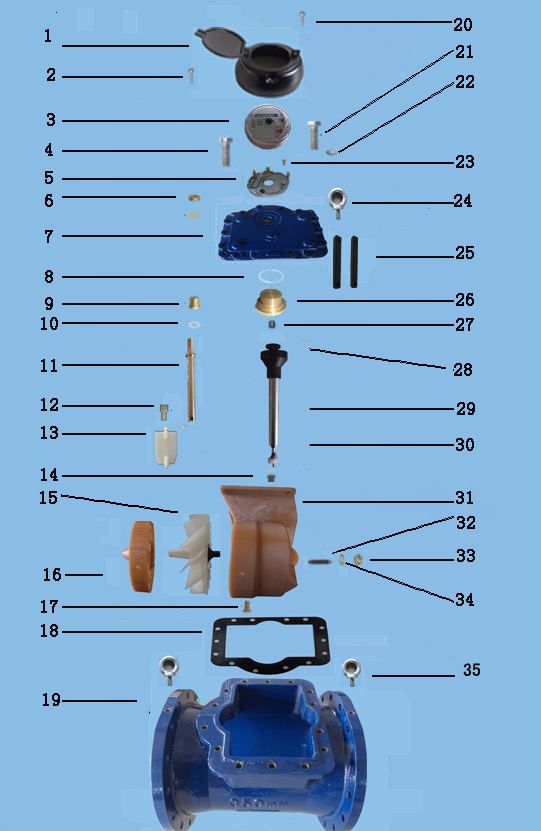

--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;

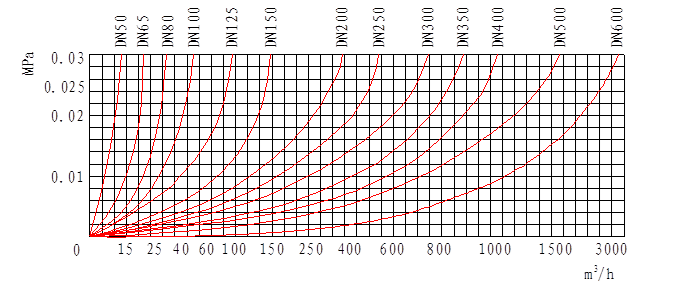

--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
--Selected high quality materials for steady & reliable characteristic;
--Technical data conform to international standard ISO 4064.
.
Working condition
Water temperature: 0.1℃～50℃ ( 0.1℃～90℃ for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement)

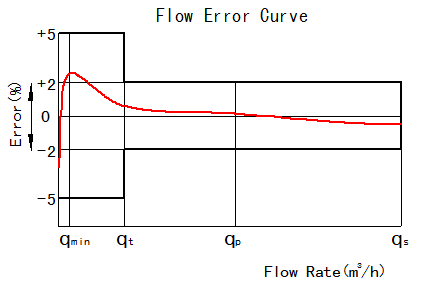

Maximum permissible errors

1. in the lower zone from qmin inclusive up to but excluding qt is ±5%
2. in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)

MAIN TECHNICAL SPECIFICATIONS

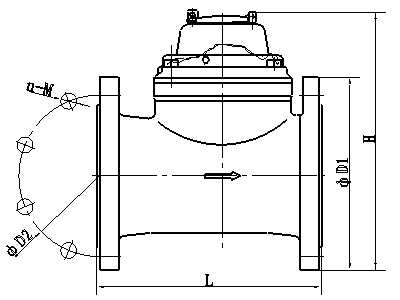

DIMENSIONS

NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.
