LXLC(R)-250~300(mm)
Removable element woltman cold (hot) water meter
This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
Application
--Measuring the volume of cold (hot) water passing through the pipeline
Feature:
--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
--Selected high quality materials for steady reliable characteristic;
--Technical data conform to international standard ISO 4064.
.
Working condition
Water temperature: 0.1℃～50℃ ( 0.1℃～90℃ for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement)

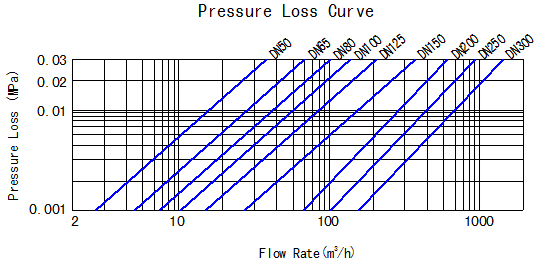

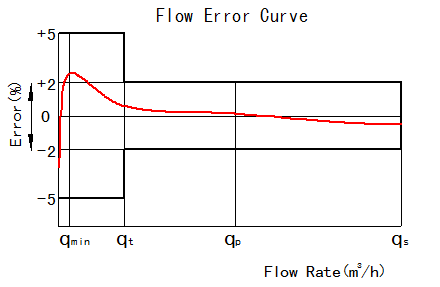

Maximum permissible errors
- in the lower zone from qmin inclusive up to but excluding qt is ±5%
- in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
MAIN TECHNICAL SPECIFICATIONS
Type |
Size (mm) |
Class |
qs Overload Flow |
qp Permanent Flow |
qt Transitional Flow |
qmin Min. Flow |
Min. Reading |
Max. Reading |
m3/h |
m3 |
LXLC-250 |
250 |
A |
800 |
400 |
120 |
32 |
0.002 |
999,999 |
B |
80 |
12 |
LXLC-300 |
300 |
A |
1200 |
600 |
180 |
48 |
0.02 |
9,999,999 |
B |
120 |
18 |

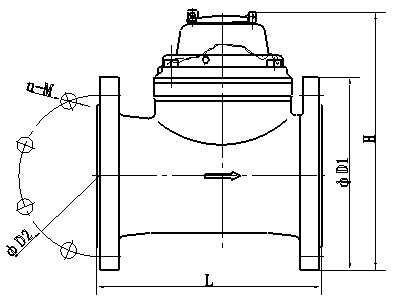

DIMENSIONS
Type |
Size |
L
Length |
H
Height |
Connecting flange |
φD1 Outside diameter |
φD2 Bolt circle diameter |
Connecting Bolts (n-M) |
mm |
LXLC-250 |
250 |
400 |
434 |
395 |
350 |
12-M20(1.0MPa) |
450 |
434 |
405 |
355 |
12-M24(1.6MPa) |
LXLC-300 |
300 |
450 |
459 |
445 |
400 |
12-M20(1.0MPa) |
500 |
459 |
460 |
410 |
12-M24(1.6MPa) |
NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.

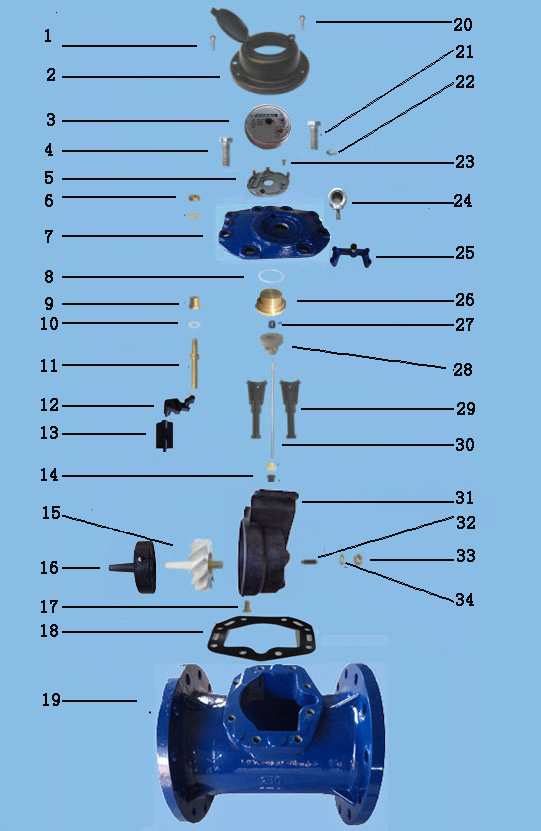

LXLC-250～300 REMOVABLE ELEMENT WOLTMAN WATER METER |
