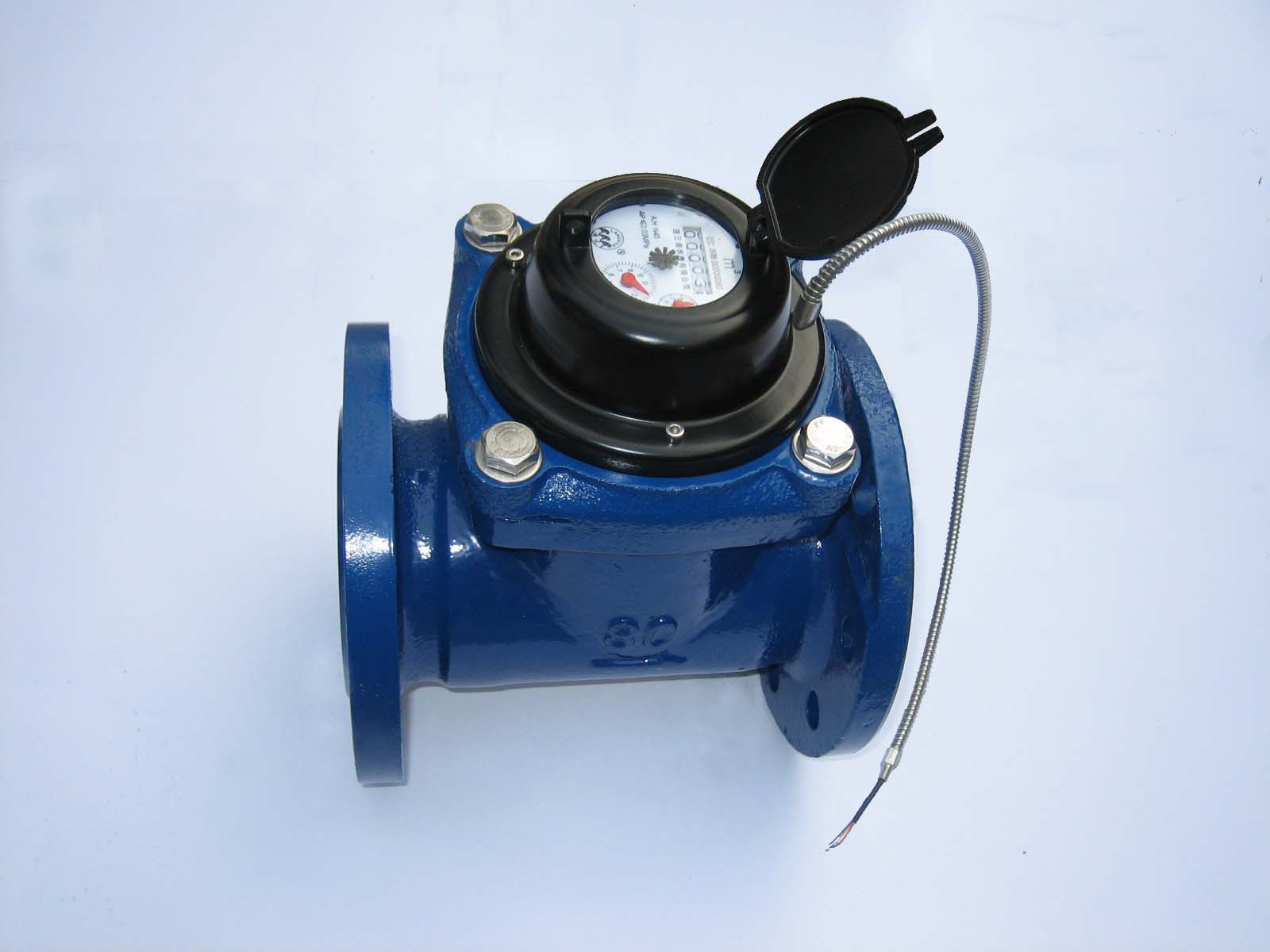

LXLC(R)-80~200(mm)
Removable element woltman cold (hot) water meter
This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
Application
--Measuring the volume of cold (hot) water passing through the pipeline
Feature:
--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
--Selected high quality materials for steady & reliable characteristic;
--Technical data conform to international standard ISO 4064.
.
Working condition
Water temperature: 0.1℃～40℃ ( 0.1℃～90℃ for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement)

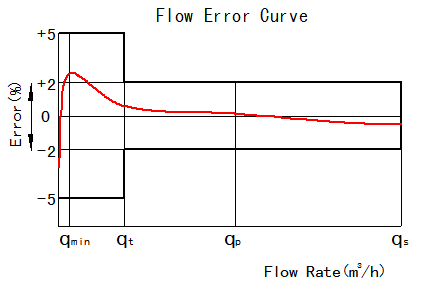

Maximum permissible errors
- in the lower zone from qmin inclusive up to but excluding qt is ±5%
- in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
MAIN TECHNICAL SPECIFICATIONS
Type |
Size
(mm) |
Class |
qs
Overload
Flow |
qp
Permanent
Flow |
qt
Transitional
Flow |
qmin
Min.
Flow |
Min.
Reading |
Max.
Reading |
m3/h |
m3 |
LXLC-80 |
80 |
A |
80 |
40 |
12 |
3.2 |
0.002 |
999,999 |
B |
8.0 |
1.2 |
LXLC-100 |
100 |
A |
120 |
60 |
18 |
4.8 |
0.002 |
999,999 |
B |
12 |
1.8 |
LXLC-125 |
125 |
A |
200 |
100 |
30 |
8 |
0.002 |
999,999 |
B |
20 |
3 |
LXLC-150 |
150 |
A |
300 |
150 |
45 |
12 |
0.002 |
999,999 |
B |
30 |
4.5 |
LXLC-200 |
200 |
A |
500 |
250 |
75 |
20 |
0.002 |
999,999 |
B |
50 |
7.5 |

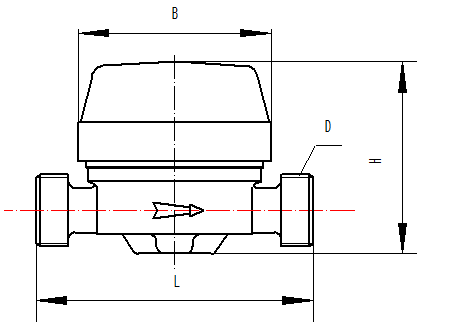

DIMENSIONS
Type |
Size |
L
Length |
H
Height |
Connecting flange |
φD1 Outside diameter |
φD2 Bolt circle diameter |
Connecting Bolts
(n-M) |
mm |
LXLC-80 |
80 |
225 |
279 |
200 |
160 |
8-M16 |
LXLC-100 |
100 |
250 |
289 |
220 |
180 |
8-M16 |
LXLC-125 |
125 |
250 |
299 |
250 |
210 |
8-M16 |
LXLC-150 |
150 |
300 |
319 |
285 |
240 |
8-M20 |
LXLC-200 |
200 |
350 |
346 |
340 |
295 |
8-M20(1.0MPa) |
12-M20(1.6MPa) |
NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.

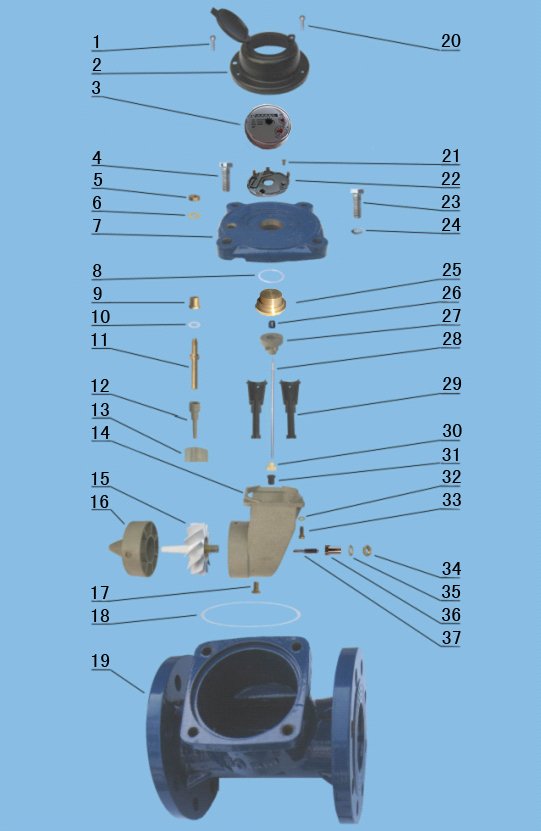

LXLC-50～300 REMOVABLE ELEMENT WOLTMAN WATER METER |
Code |
Description |
Material |
QTY |
1 |
Screw For Sealing |
Stainless Steel |
1 |
2 |
Cover With Lid |
Assembly |
1 |
3 |
Sealed Register |
Assembly |
1 |
4 |
Screw M4×20 |
Stainless Steel |
2 |
5 |
Gasket |
Brass |
2 |
6 |
Adjusting Nut |
Brass |
1 |
7 |
Flange Cover |
Cast Iron |
1 |
8 |
O-ring |
Silicon Rubber |
1 |
9 |
Bush |
Brass |
1 |
10 |
Gasket |
Synthetic Rubber |
1 |
11 |
Adjusting Lever |
Brass |
1 |
12 |
Connecting Lever |
POM OR MPPO |
1 |
13 |
Adjusting Plate |
POM OR MPPO |
1 |
14 |
Support |
???? ABS OR MPPO |
1 |
15 |
Turbine Component |
Assembly |
1 |
16 |
Rectifier |
ABS OR MPPO |
1 |
17 |
Screw |
Brass |
1 |
18 |
O-ring |
Synthetic Rubber |
1 |
19 |
Body |
Cast Iron |
1 |
20 |
Screw For Sealing |
Stainless Steel |
1 |
21 |
Screw For Sealing |
Stainless Steel |
3 |
22 |
Support |
ABS |
1 |
23 |
Screw M4×20 |
Stainless Steel |
2 |
24 |
Gasket |
Stainless Steel |
4 |
25 |
Upper Bearing Plate |
Brass |
1 |
26 |
Upper Bearing |
Nylon With Graphite |
1 |
27 |
Magnet Component |
Component |
1 |
28 |
Transmission Shaft |
Stainless Steel |
1 |
29 |
Sheath |
Nylon |
2 |
30 |
Bevel Gear |
POM |
1 |
31 |
Bevel Gear |
Nylon |
1 |
32 |
Gasket |
Stainless Steel |
4 |
33 |
ScrewM5X12 |
Stainless Steel |
4 |
34 |
Nut |
Brass |
1 |
35 |
Gasket |
Brass |
1 |
36 |
Turbine Shaft Hold |
Brass |
1 |
37 |
Turbine Shaft |
Tungsten Steel |
1 |
|
