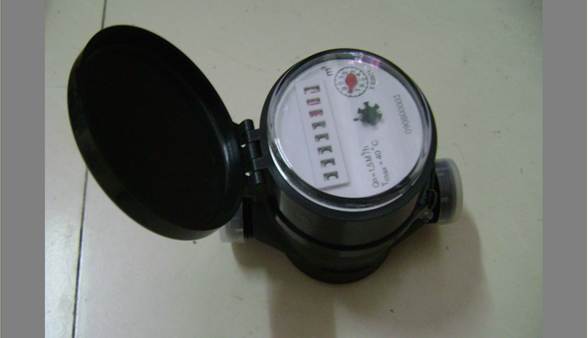

LXDG-15M~20M
Single-jet, vane wheel, dry-dial water meter
(minitype with eight number wheels)
Application:
--Measuring the volume of cold potable water passing through the pipeline.
Feature:

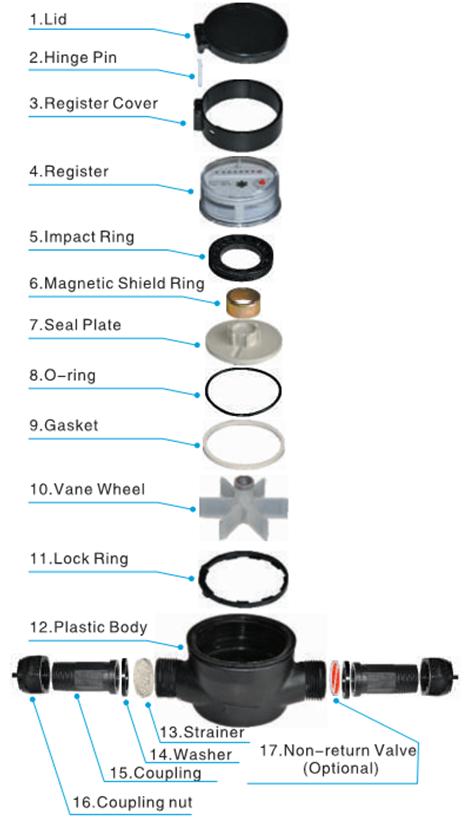

--Single-jet, dry-dial, free rotating register, small in size and light in weight,
--Magnetic drive, Resistance to exterior magnet interference,
--Keep the reading clear in a long term service.
Note:
--Measuring accuracy conform to ISO 4064 class B standard.
Working condition:
--Water temperature:0.1℃～30℃
--Water pressure:≤1.0Mpa

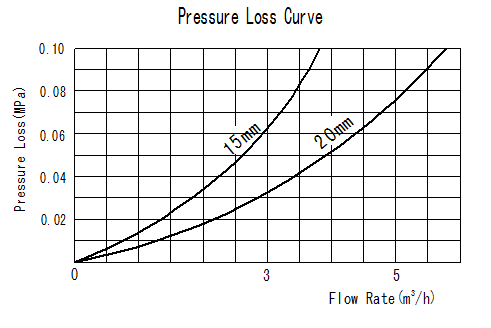

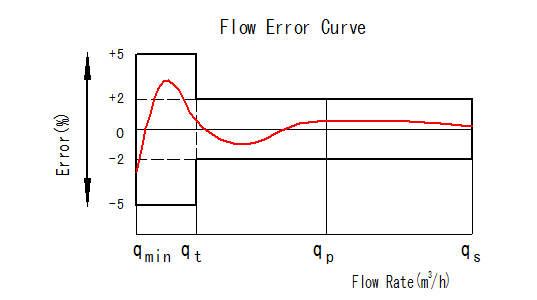

Maximum Permissible Error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%.
(2) in the upper zone from qt inclusive up to and including qs is ±2%.
MAIN TECHNICAL SPECIFICATIONS
Type |
Size
(mm) |
Class |
qs
Overload
Flow |
qp
Permanent
Flow |
qt
Transitional
Flow |
qmin
Minimum
Flow |
Minimum
Reading |
Maximum
Reading |
m3/h |
L/h |
m3 |
LXDG-15M |
15 |
B |
3.0 |
1.5 |
120 |
30 |
0.0001 |
99,999 |
LXDG-20M |
20 |
B |
5.0 |
2.5 |
200 |
50 |
0.0001 |
99,999 |
DIMENSIONS
Type |
Size |
L
Length |
B
Width |
H
Height |
D Connecting Thread |
mm |
LXDG-15M |
15 |
110 |
67.5 |
72 |
G3/4B |
LXDG-20M |
20 |
130 |
67.5 |
73.5 |
G1B |
|
