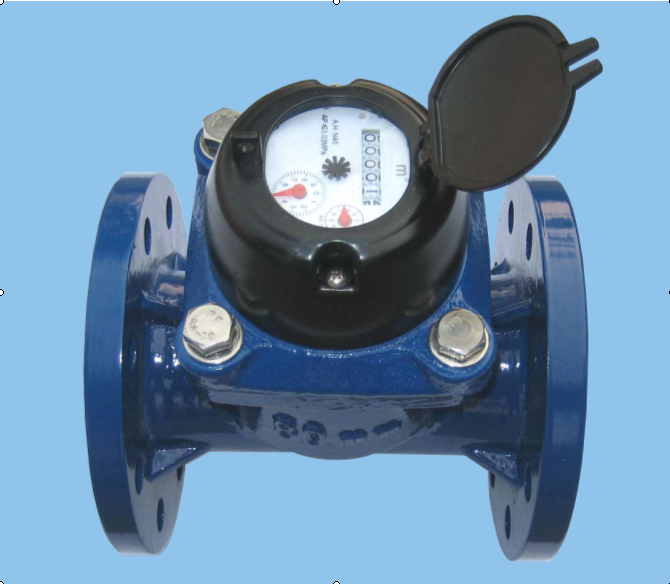

LXXG(R)-50~300(mm)
Horizontal vane wheel, dry-dial cold (hot) water meter
This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
Application
--Measuring the volume of cold (hot) water passing through the pipeline
Feature:
--Removable element structure, easy installation and maintenance;
--Dry-dial, Magnetic drive;

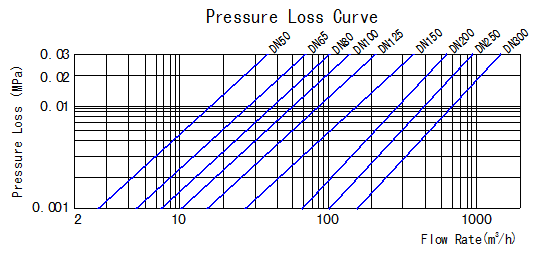

--Large flow capacity, small pressure loss;
--Resist water hummer and pollution;
--Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;
--Selected high quality materials for steady and reliable characteristic;
--Technical data conform to international standard ISO 4064.
Working condition
Water temperature: 0.1℃～50℃ (0.1℃～90℃ for hot water meter)
Water pressure: ≤1.0Mpa (1.6MPa on request)

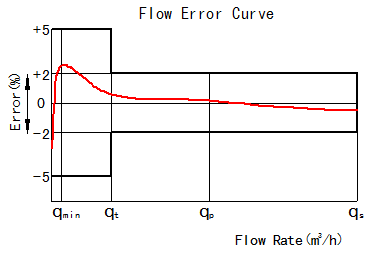

Maximum permissible errors
in the lower zone from qmin inclusive up to but excluding qt is ±5%
in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
MAIN TECHNICAL SPECIFICATIONS FOR COLD WATER
Type |
Size (mm) |
Class |
qs Overload Flow |
qp Permanent Flow |
qt Transitional Flow |
qmin Min. Flow |
Min. Reading |
Max. Reading |
m3/h |
m3 |
LXXG-50 |
50 |
A |
30 |
15 |
4.5 |
1.2 |
0.0002 |
999,999 |
LXXG-65 |
65 |
A |
50 |
25 |
7.5 |
2.0 |
0.002 |
999,999 |
LXXG-80 |
80 |
A |
80 |
40 |
12 |
3.2 |
0.002 |
999,999 |
LXXG-100 |
100 |
A |
120 |
60 |
18 |
4.8 |
0.002 |
999,999 |
LXXG-125 |
125 |
A |
200 |
100 |
30 |
8 |
0.002 |
999,999 |
LXXG-150 |
150 |
A |
300 |
150 |
45 |
12 |
0.002 |
999,999 |
LXXG-200 |
200 |
A |
500 |
250 |
75 |
20 |
0.002 |
999,999 |
LXXG-250 |
250 |
A |
800 |
400 |
120 |
32 |
0.02 |
9,999,999 |
LXXG-300 |
300 |
A |
1200 |
600 |
180 |
48 |
0.02 |
9,999,999 |

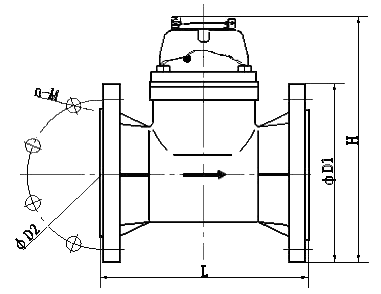

DIMENSIONS
Type |
Size |
L
Length |
H
Height |
Connecting flange |
φD1 Outside diameter |
φD2 Bolt circle diameter |
Connecting Bolts
(n-M) |
mm |
LXXG-50 |
50 |
200 |
253 |
165 |
125 |
4-M16 |
LXXG-65 |
65 |
200 |
268 |
185 |
145 |
4-M16 |
LXXG-80 |
80 |
225 |
284 |
200 |
160 |
8-M16 |
LXXG-100 |
100 |
250 |
295 |
220 |
180 |
8-M16 |
LXXG-125 |
125 |
250 |
310 |
250 |
210 |
8-M16 |
LXXG-150 |
150 |
300 |
339 |
285 |
240 |
8-M20 |
LXXG-200 |
200 |
350 |
382 |
340 |
295 |
8-M20(1.0MPa) |
12-M20(1.6MPa) |
LXXG-250 |
250 |
400 |
433 |
395 |
350 |
12-M20(1.0MPa) |
450 |
438 |
405 |
355 |
12-M24(1.6MPa) |
LXXG-300 |
300 |
450 |
483 |
445 |
400 |
12-M20(1.0MPa) |
500 |
488 |
460 |
410 |
12-M24(1.6MPa) |
NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.

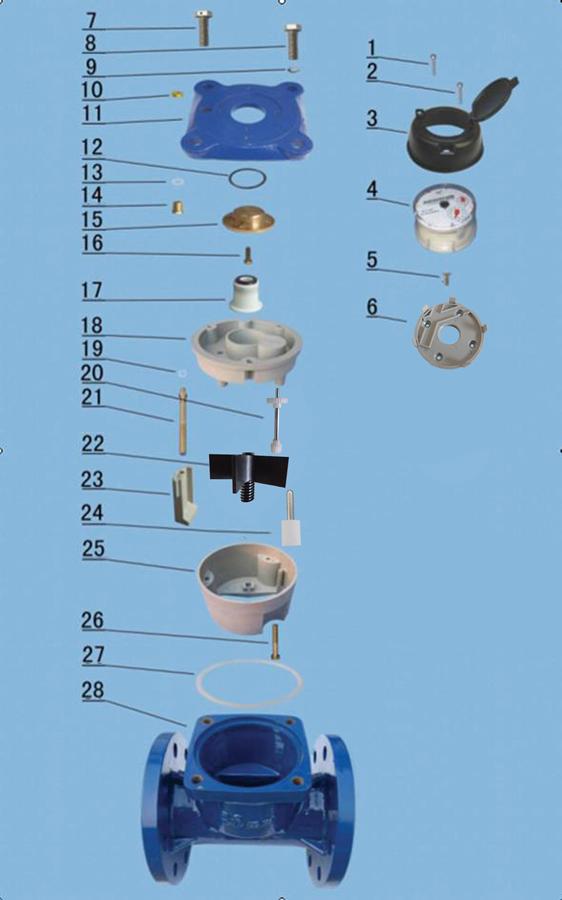

LXXG-50～300 HORIZONTAL VANE WHEEL, DRY-DIAL COLD WATER METER |
Code |
Description |
Material |
QTY |
1 |
Screw M5×45 For Sealing |
Stainless Steel |
1 |
2 |
Screw M5×45 |
Stainless Steel |
1 |
3 |
Cover With Lid |
Assembly |
1 |
4 |
Sealed Register |
Assembly |
1 |
5 |
Screw |
Stainless Steel |
4 |
6 |
Support |
ABS |
1 |
7 |
Bolt For Sealing M12×35 |
Stainless Steel |
1 |
8 |
Bolt M12×35 |
Stainless Steel |
3 |
9 |
Gasket |
Stainless Steel |
4 |
10 |
Adjusting Nut |
Brass |
1 |
11 |
Flange Plate |
Cast Iron(or Nodular cast iron) |
1 |
12 |
O-ring |
Silicon Rubber |
1 |
13 |
O-ring |
Silicon Rubber |
1 |
14 |
Bush For Adjustment |
Brass |
1 |
15 |
Upper Bearing Plate |
Brass |
1 |
16 |
PIVIT |
Stainless Steel |
4 |
17 |
Lower Central Gear |
Component |
1 |
18 |
Cover Plate |
MPPO |
1 |
19 |
O-ring For Adjustment |
Rubber |
2 |
20 |
Transmission Gear Component |
Assembly |
1 |
21 |
Adjusting Lever |
Brass |
1 |
22 |
Turbine |
Component |
1 |
23 |
Adjusting Plate |
MPPO |
1 |
24 |
Turbine shaft |
Stainless Steel |
2 |
25 |
Measuring Chamber |
MPPO |
1 |
26 |
Fixing Screw |
Stainless Steel |
3 |
27 |
O-ring |
Rubber |
1 |
28 |
Body |
Cast Iron(or Nodular cast iron) |
1 |
|
