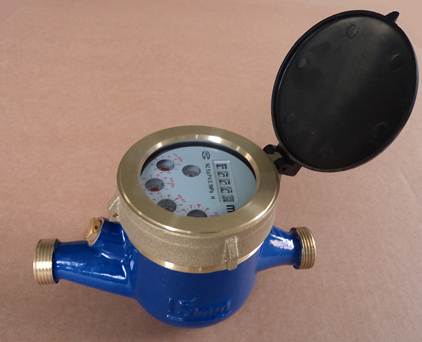

LXSY-15~50
Multi-jet, vane wheel, liquid capsulized counter water meter
Feature :
Accurate measurement, easy reading, reliable operation, without condensation problem, etc..
Application:
Measuring the volume of cold portable water passing through the pipeline
Working condition:
a) Water temperature 0.1℃～40℃
b) Water pressure ≤1.0MPa

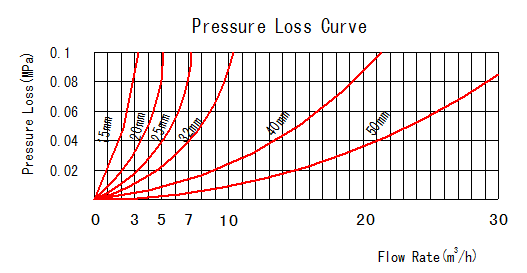

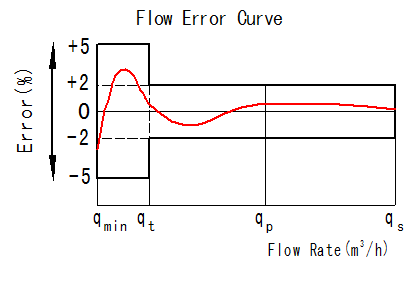

Maximum permissible error:
a) In the lower zone from qmin inclusive up to but excluding qt is ±5%
b) In the upper zone from qt inclusive up to and including qs is ±2%
Note:
Technical data conform to international Standard ISO4064 Class B
MAIN TECHNICAL SPECIFICATIONS
|
Type |
Size
(mm) |
Class |
qs
Maximum
Flow |
qp
Nominal
Flow |
qt
Transitional
Flow |
qmin
Minimum
Flow |
Minimum
Reading |
Maximum
Reading |
m3/h |
L / h |
m3 |
LXSY – 15 |
15 |
B |
3 |
1.5 |
120 |
30 |
0.00005 |
99,999 |
LXSY – 20 |
20 |
B |
5 |
2.5 |
200 |
50 |
0.00005 |
99,999 |
LXSY – 25 |
25 |
B |
7 |
3.5 |
280 |
70 |
0.00005 |
99,999 |
LXSY – 32 |
32 |
B |
12 |
6.0 |
480 |
120 |
0.00005 |
99,999 |
LXSY – 40 |
40 |
B |
20 |
10.0 |
800 |
200 |
0.00005 |
99,999 |
LXSY – 50 |
50 |
B |
30 |
15.0 |
3000 |
450 |
0.00005 |
99,999 |

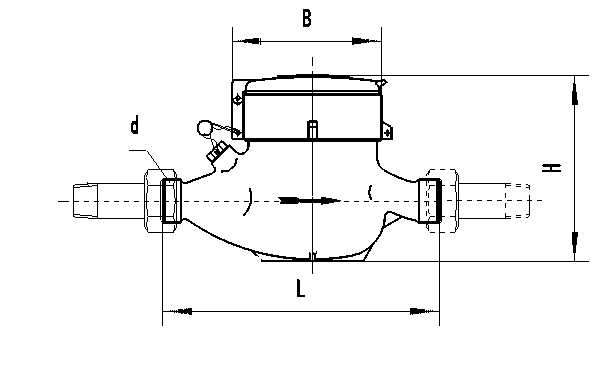

DIMENSION
Type |
Size |
Length
L |
Width
B |
Height
H |
Connecting Thread
d (in) |
mm |
LXSY – 15 |
15 |
165 |
98 |
114.5 |
G 3/4B |
LXSY – 20 |
20 |
190 |
98 |
115.5 |
G1B |
LXSY – 25 |
25 |
260 |
103.5 |
120 |
G1 1/4B |
LXSY – 32 |
32 |
260 |
103.5 |
120 |
G1 1/2B |
LXSY – 40 |
40 |
300 |
125 |
159 |
G2B |
LXSY–50 |
50 |
300 |
125 |
159 |
G2 1/2B |
280 |
160 |
185 |
Flange connect ISO7005-2:1988
φD=125 |

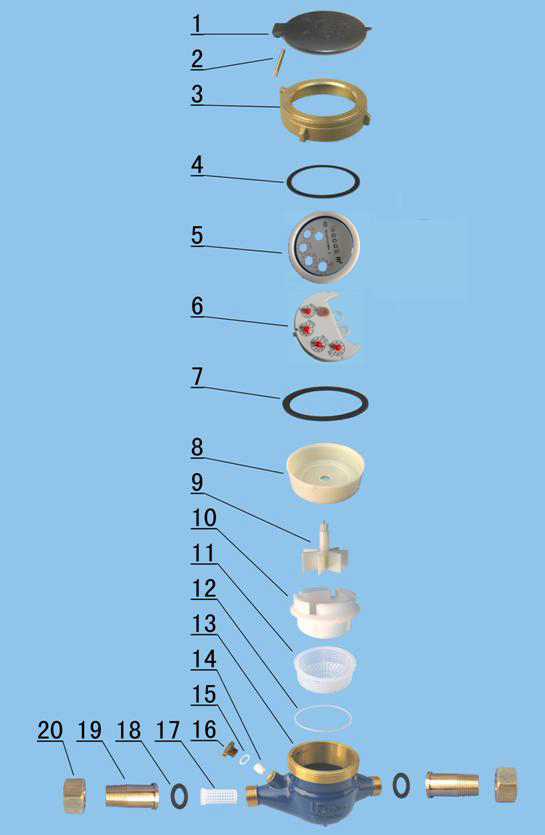

LXSY-15～50 MULTI-JET LIQUID SEALED TYPE COLD WATER METER |
Code |
Description |
Material |
QTY |
1 |
Lid |
HDPE |
1 |
2 |
Hinge Pin |
Brass |
1 |
3 |
Cap |
Brass |
1 |
4 |
Sliding Gasket |
PP |
1 |
5 |
Capsulized Register |
Assembly |
1 |
6 |
Clockwork |
Assembly |
1 |
7 |
Gasket |
Rubber |
1 |
8 |
Gearing box |
ABS |
1 |
9 |
Turbine Component |
Component |
1 |
10 |
Measuring Chamber |
Component |
1 |
11 |
Bottom Strainer |
LDPE |
1 |
12 |
Gasket |
Silicon Rubber |
1 |
13 |
Body |
Brass |
1 |
14 |
Adjusting Screw |
POM |
1 |
15 |
Adjusting Gasket |
Nylon |
1 |
16 |
Adjusting Plug |
Brass |
1 |
17 |
Inlet Strainer |
PP |
1 |
18 |
Coupling Gasket |
Rubber |
2 |
19 |
Coupling Tail Piece |
Brass |
2 |
20 |
Coupling Nut |
Brass |
2 |
|
